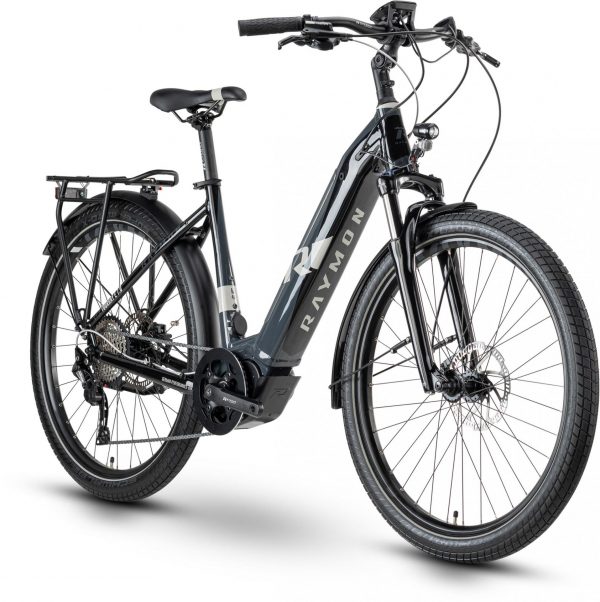

R Raymon Tourray E 7.0 2020

Trekking e-Bike

R Raymon

Verfügbarkeit prüfen

Datenblatt als PDF

Zusätzliche Informationen

im Überblick
e-Bike Typ Trekking e-Bike
Modelljahr 2020
Motorunterstützung 25
Schaltung Hersteller Shimano
Schaltungstyp Kettenschaltung
Federung Federgabel
Federung mm 75
Bremsentyp Hydraulische Scheibenbremse
Farbe schwarz, anthrazit, grau
Rahmengröße 48, 52, 56, 60, 44
Reifengröße 27,5''
Rahmenform Diamant, Trapez, Komfort
Antriebseinheit
Motor Yamaha PW-ST 36V 250W
Akku 500 Wh
Display Yamaha Display C, 2,8'' TFT
Ladegerät Yamaha Charger, 4A
Schaltung & Antrieb
Schaltung Shimano Deore, RD-M6000, GS, 10-Gang
Schalthebel Shimano Deore, SL-M6000-R, Rapidfire Plus
Schaltwerk Shimano Deore, RD-M6000, GS, 10-Gang
Kurbelsatz R Raymon Components, Aluminium, JIS, 170 mm
Kassette Shimano, CS-HG500-10, 11-42T
Kette KMC e10 SPORT EPT
Rahmen & Gabel
Rahmen 6061 Aluminium, Trekking, integrierter Akku
Gabel SR Suntour MOBIE A32 COIL LO, 75 mm
Steuersatz R Raymon Components Headset, 1-1/8''-1,5'', tapered
Bremse
Bremsanlage Tektro HD-M500
Laufräder
Felgen MACH1, TRUCKY 30
Naben (V/H) R Raymon Components / Aluminium
Reifen Schwalbe Super Moto-X, Green Guard, Snake Skin, 27,5 x 2,40
Cockpit
Lenker R Raymon Components, 640 mm, Rise: 18 mm
Vorbau R Raymon Components, Aluminium, 90 mm
Lenkergriffe R Raymon Components Grips, 132 mm
Sattelstütze R Raymon Components Ridgid Seatpost, 450 mm
Pedale R Raymon Components Pedale
Sattel R Raymon Components Saddle
Ausstattung
Frontlicht AXA COMPACTLINE 35, 35 Lux, LED
Rücklicht Herrmans H-Cargo, Dynamo, LED
Gepäckträger R Raymon Components Carrier, max. 25 kg
Schutzbleche SKS, B-65
Ständer R Raymon Components Kickstand, 40 mm, einstellbar
Sonstiges
Gewicht 26,4 kg
Zulässiges Gesamtgewicht 130 kg
