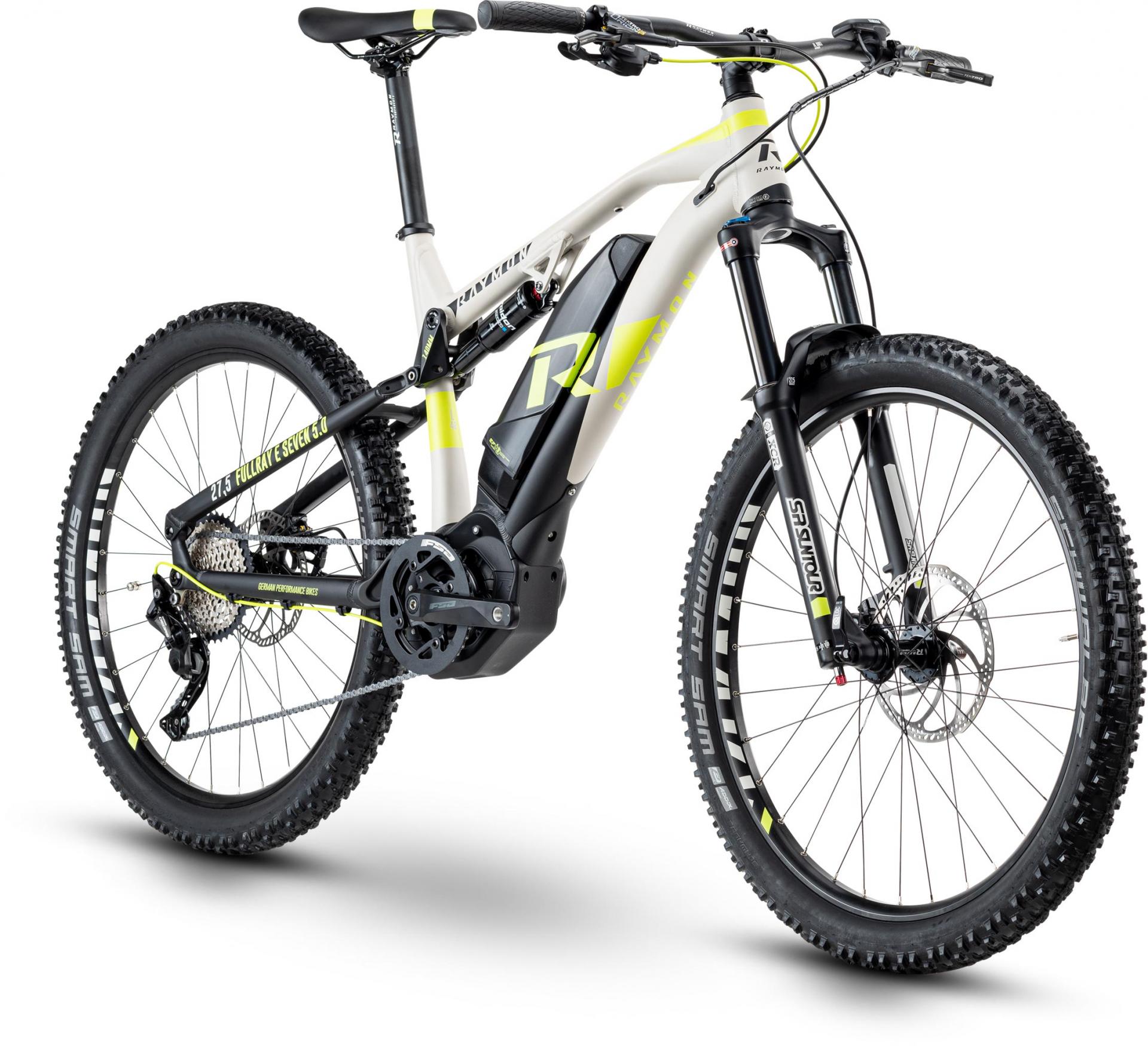

R Raymon Fullray E-Nine 5.0 2020

e-Mountainbike

R Raymon

Verfügbarkeit prüfen

Datenblatt als PDF

Zusätzliche Informationen

im Überblick
e-Bike Typ e-Mountainbike
Modelljahr 2020
Motorunterstützung 25
Schaltung Hersteller Shimano
Schaltungstyp Kettenschaltung
Federung Fully
Federung mm 130
Bremsentyp Hydraulische Scheibenbremse
Farbe schwarz, grau, grün
Rahmengröße 42, 46, 50
Reifengröße 29''
Rahmenform MTB Fully
Antriebseinheit
Motor Yamaha PW-ST 36V 250W
Akku 500 Wh
Display Yamaha Display A, 1,7'' LCD
Ladegerät Yamaha Charger, 4A
Schaltung & Antrieb
Schaltung Shimano Deore, RD-M6000, GS, 10-Gang
Schalthebel Shimano Deore, SL-M6000-R, Rapidfire Plus
Schaltwerk Shimano Deore, RD-M6000, GS, 10-Gang
Kurbelsatz FSA, CK-220/JIS, Aluminium, 165 mm
Kassette Shimano, CS-HG500-10, 11-42T
Kette KMC e10 SPORT EPT
Rahmen & Gabel
Rahmen 6061 Aluminium, All Mountain
Gabel SR Suntour XCR34 AIR BOOST LOR DS, 130 mm
Steuersatz R Raymon Components Headset, 1-1/8''-1,5'', tapered
Dämpfer SR Suntour Raidon R, 200 x 57 mm
Bremse
Bremsanlage Tektro HD-M735, v: 203 mm/h: 180 mm
Laufräder
Felgen MACH1, MAXX 25
Naben (V/H) R Raymon Components / Boost/R Raymon Components
Reifen Schwalbe Smart Sam, Performance, 29 x 2,25
Cockpit
Lenker R Raymon Components, 760 mm, Rise: 18 mm
Vorbau R Raymon Components, Aluminium, 40 mm
Lenkergriffe R Raymon Components Grips, 132 mm
Sattelstütze R Raymon Components Ridgid Seatpost, 450 mm
Pedale R Raymon Components Pedale
Sattel R Raymon Components Saddle
Sonstiges
Gewicht 23,6 kg
Zulässiges Gesamtgewicht 130 kg
