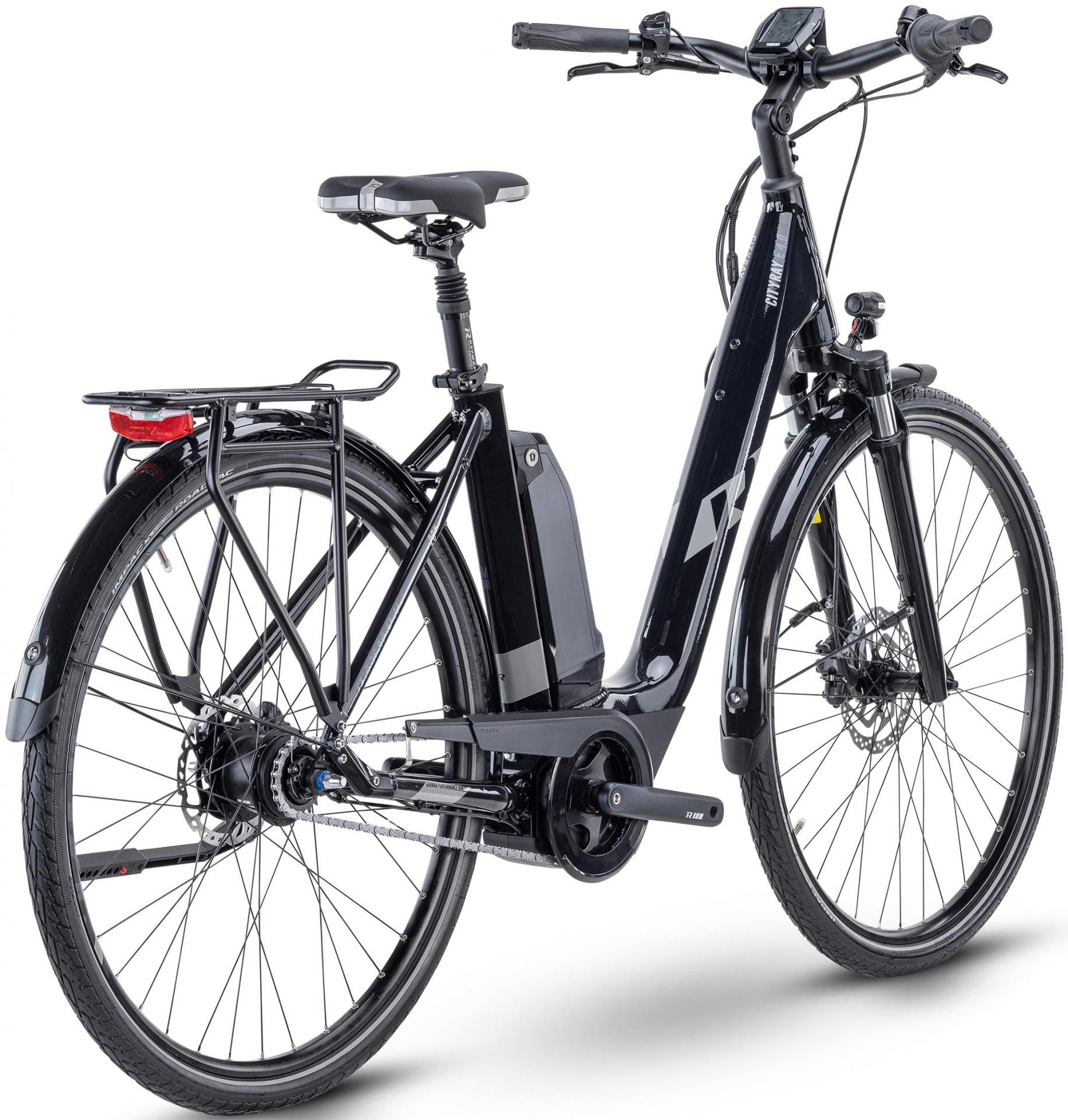

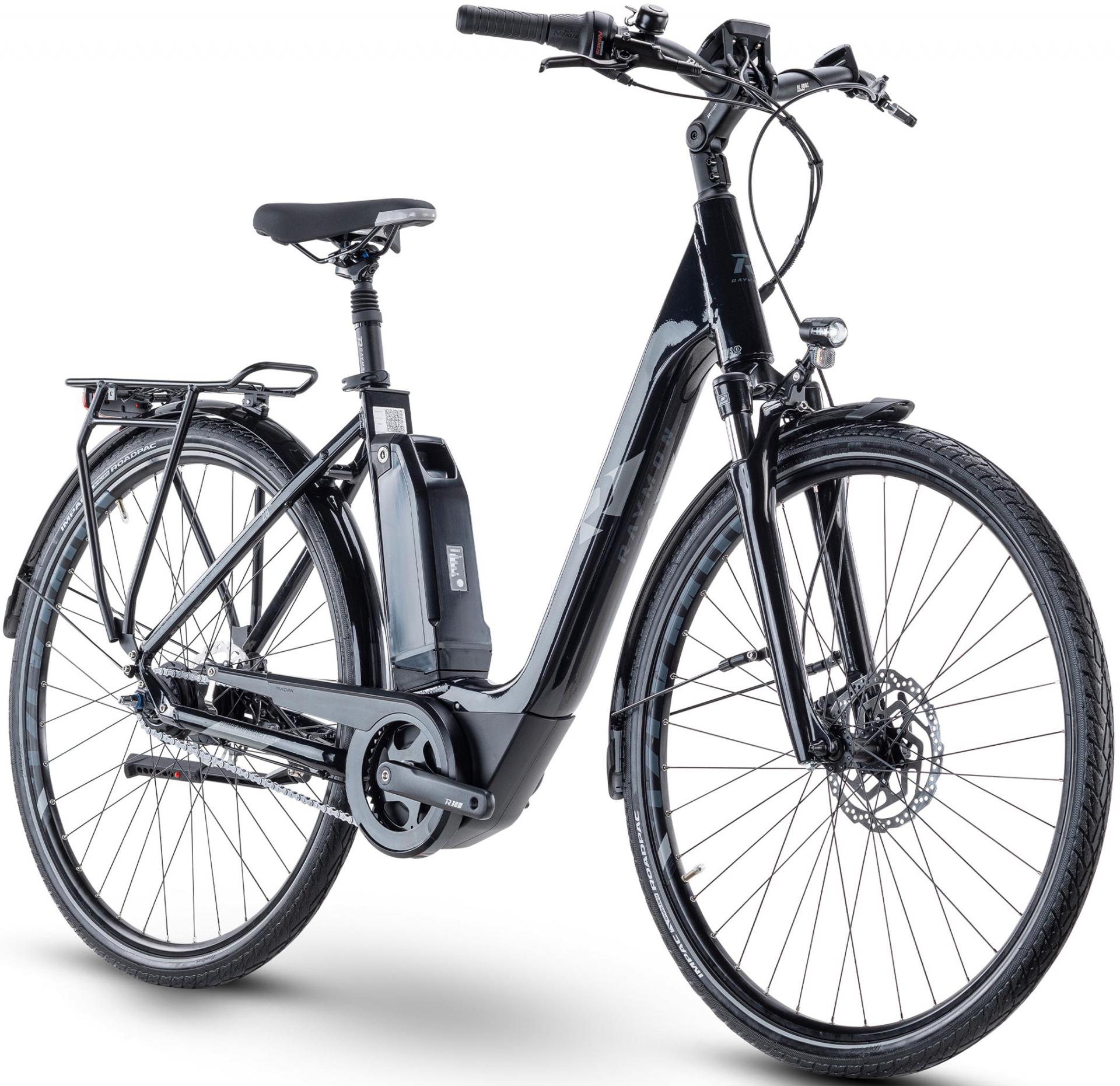

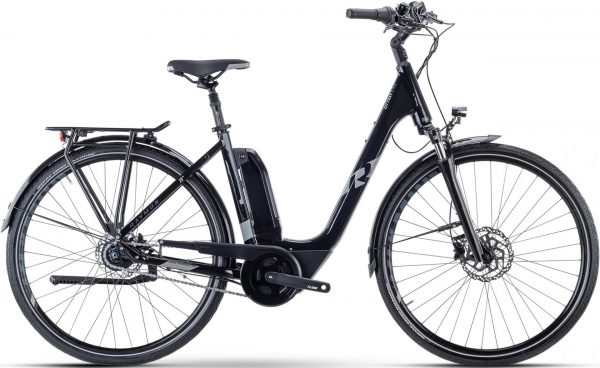

R Raymon Cityray E 4.0 CB 2021

City e-Bike

R Raymon

Verfügbarkeit prüfen

Zusätzliche Informationen

im Überblick
e-Bike Typ City e-Bike
Modelljahr 2021
Motorunterstützung 25
Schaltung Hersteller Shimano
Schaltungstyp Nabenschaltung
Federung Federgabel
Bremsentyp Hydraulische Scheibenbremse
Farbe schwarz, rot, grau, silber
Rahmengröße 45, 50, 55
Reifengröße 26'', 28''
Rahmenform Komfort
Antriebseinheit
Motor Yamaha PW-CE 36V 250W
Akku 500 Wh
Display Yamaha Display C, TFT, BT-LE
Ladegerät Yamaha, Fast Charger, 4Ah
Schaltung & Antrieb
Schaltung Shimano Nexus, SG-C6001, 8-Gang Nabenschaltung
Schalthebel Shimano Nexus, SL-C6000, Revoshift, 8-Gang
Schaltwerk Shimano Nexus SG-C6001, 8-Gang
Kurbelsatz R Raymon, Alloy, 170 mm, 38T, Rücktrittbremse
Kassette Shimano SM-Gear, Single Sprocket, 19T
Kette KMC Z1 EPT
Rahmen & Gabel
Rahmen 6061 Aluminium, City, External Battery, 10 x 135 mm
Gabel SR Suntour NEX E25 DS, tapered, 50 mm Federweg
Bremse
Bremsanlage Shimano BR-MT200, hydr. Scheibenbremse, v: 180 mm/h: 160 mm
Laufräder
Felgen Mach1 630E, Eyelets, Tubeless
Naben (V/H) Shimano, TX505, 9 x 100 mm / Nexus, SG-C6001-8, 10 x 135 mm
Reifen Impac Roadpac, Puncture ProTection, Reflex, 26 x 1,85''/28 x 1,85''
Cockpit
Lenker R Raymon, 31.8, 640 mm, Sweep: 35°, Rise: 25 mm
Vorbau R Raymon 31.8, 85 mm, einstellbar
Sattelstütze R Raymon 30.9, Suspension Seatpost, 350 mm
Pedale R Raymon
Sattel R Raymon Ergo
Ausstattung
Frontlicht AXA Compactline, 20 Lux
Rücklicht AXA Blueline, Steady
Gepäckträger R Raymon, MIK-System
Schutzbleche Eurofender Tempo 58
Ständer R Raymon 90R, einstellbar
Sonstiges
Zulässiges Gesamtgewicht 130 kg
